EtherNet IP(Slave)/PROFIBUS DP Gateway
Embedded EtherNet IP
price click click shipping shipping

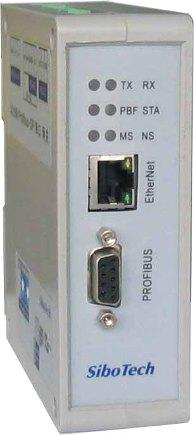

Product Name: EtherNet IP(Slave)/PROFIBUS DP Gateway
Order Code: EPS-320IP
Description:

The EPS-320IP gateway provides a seamless connection between a EtherNet/IP network and a PROFIBUS DP network and establishes the communication , exchanges data between a EtherNet/IP master and a PROFIBUS DP master.


Technical Specification:
  1. Acts as PROFIBUS DP slave on PROFIBUS DP network, automatic baud rate detection on PROFIBUS DP(9600 bit/s ~ 12 Mbit/s)
  2. 1KV galvanic isolated on PROFIBUS DP interface
  3. Supports ODVA standard EtherNet/IP communication protocol
  4. EtherNet/IP supports three groups I/O connection at the same time
  5. EtherNet/IP supports both reading and writing I/O data
  6. Supports monitoring the other network connection status
  7. Supports byte swapping: no swapping, double-byte swapping and four-byte swapping
  8. Operating Temp.: -40°F to 158°F (-40 ºC to 70 ºC)
  9. Rel. Humidity: 5%-95% RH non-condensing
  10. Dimension(W*H*D): 40mm* 125mm * 110mm(1.6in*4.9in*4.5in)
  11. Mounting: DIN Rail Mounting(35mm)
