| Product Name: |

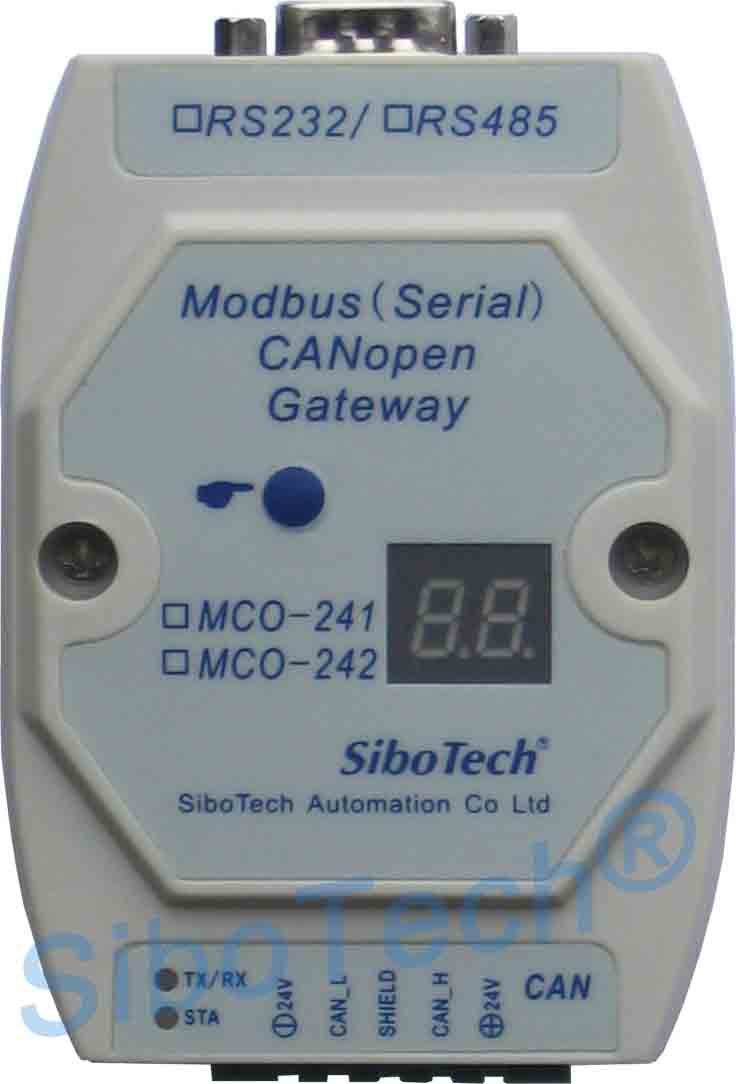

Modbus(Master)/CANopen Gateway |
|
| Order Code: |
MCO-241 |
| Description: |
|
| Connects multiple Modbus slave devices to CANopen network. |
Technical Specification:
- Acts as CANopen slave on CANopen network
- Acts as Modbus RTU/ASCII master on serial side, support 01H, 02H , 03H, 04H, 05H, 06H, 0FH and 10H function codes
- CANopen profile DS-301 V4.02 and CIA Draft Recommendation 303
- CAN interface has 1KV optoelectronic isolation
- Serial RS485 on board and baud rate up to 115200bps
- CANopen interface baud rate up to 1Mbps
- Max Input Bytes: 512 Bytes
Max Output Bytes: 512 Bytes
Max Input Bytes + Output Bytes: 1024 Bytes
- Easy configuration with free CM-123 software tool
- Power requirements: 24VDC (9V~ 30V),< 2.5W;
- Operating Temp.: -4°F to 140°F (-20 ºC to 60 ºC)
Rel. Humidity: 5%-95% RH non-condensing
- Dimension(W*H*D): 100mm * 70mm * 25mm(3.95in*2.75in*1.00in);
- Installation: 35mm rail;
|
|
| |
|
|
| |
