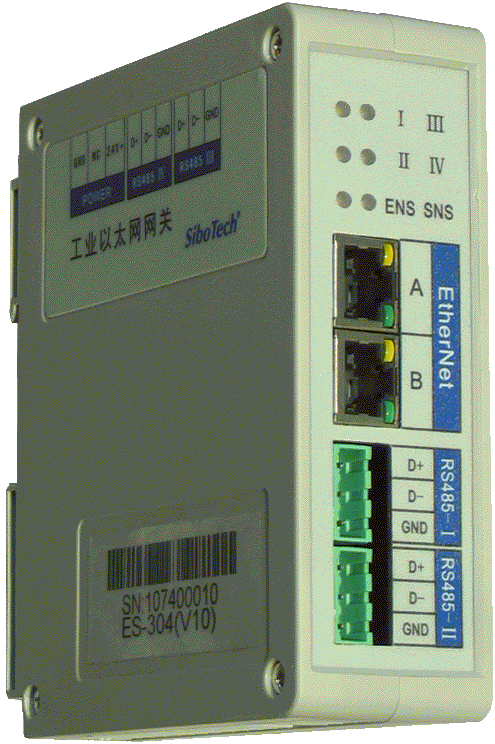

ES Series Gateway is an Ethernet device and a Modbus serial devices interconnected gateways. Connect the Modbus TCP protocol to the Modbus RTU/ASCII(RS485/RS232)device.

1. Ethernet 10/100M, built-in network isolation transformer;
2. Two Ethernet RJ45 interface, built-in switch function, support cascade, can be used in a ring network, and can save cables and switches in field connections;
3. Support mapping slave ID;
4. Support automatically routing the requests to the serial interface;
5. Support network security settings: limit the communication client IP address range and set login password;
6. As Modbus TCP server, support up to four connections, and can simultaneously support 32 commands request;
7. As Modbus TCP client, support accessing four different IPs or different ports of Modbus TCP server;
8. Each serial interface is RS485 or RS232, half-duplex, baud rate up to 230400 bps, parity: none, odd, even optional, stop bits: 1 or 2. optional;
9. Operating modes: Modbus RTU/ASCII slave mode for Modbus TCP client and Modbus RTU/ASCII slave communication;
   Modbus RTU/ASCII master mode for Modbus RTU/ASCII master and Modbus TCP server communication;
10. Configuration Software: MT-123;
11. Power: 24VDC (11V-30V), 130mA (24VDC);
12. Temperature: operating -40 ~ 60 ℃.
    Humidity: 5 to 95% (No Condensing);
13. Mechanical Dimension: 110mm(D) * 40mm(W) * 125mm(H);
14. Installation: 35mm rail;
15. Protection Level: IP20;
