| Product Name: |

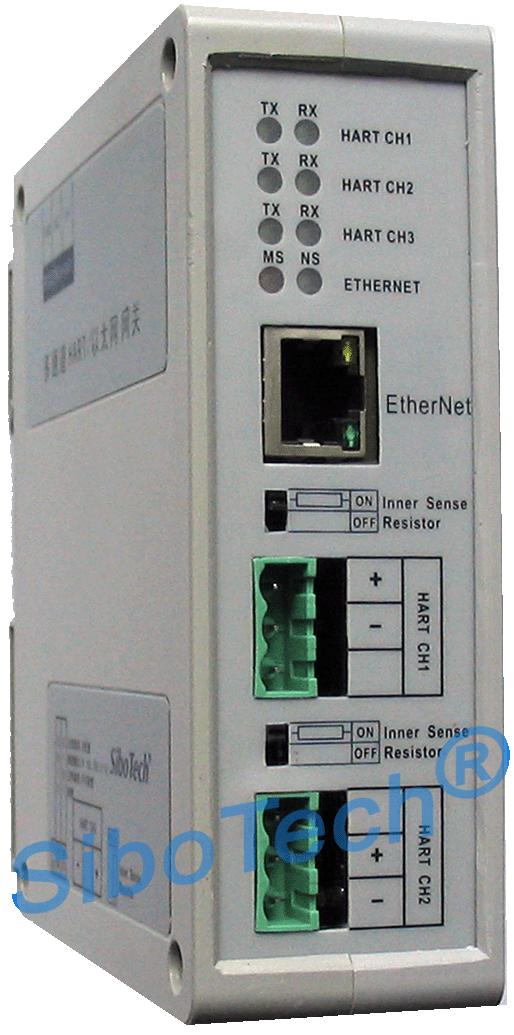

3-channel HART / Modbus TCP Gateway |
| Order Code: |
HME-635 |
| Description: |
| HME-635 gateway can connect HART slave devices to Modbus TCP network. |
Technical Specification:
- Supports three HART channel and each channel can connect 13 HART devices when using internal resistor and 15 HART devices when using an external resistor (250Ω)
- Acts as a primary master or secondary master on HART network, supports burst mode, long frame format and all HART commands
- HART interface supports single-point mode and multi-point mode
- Automatic baud rate detection on Ethernet (10/100M)
- As Modbus TCP server, supports up to 36 Modbus TCP clients connections, Modbus TCP can support 512 command request
- Easy configuration with free HTConfig-123 software tool
- Operating Temp.: -40°F to 158°F (-40 ºC to 70 ºC)
Rel. Humidity: 5%-95% RH non-condensing
- Dimension（W*H*D）: 40mm* 125mm * 110mm（1.6in*4.9in*4.5in）
- Mounting: DIN Rail Mounting(35mm)
|
|
