| Product Name: |

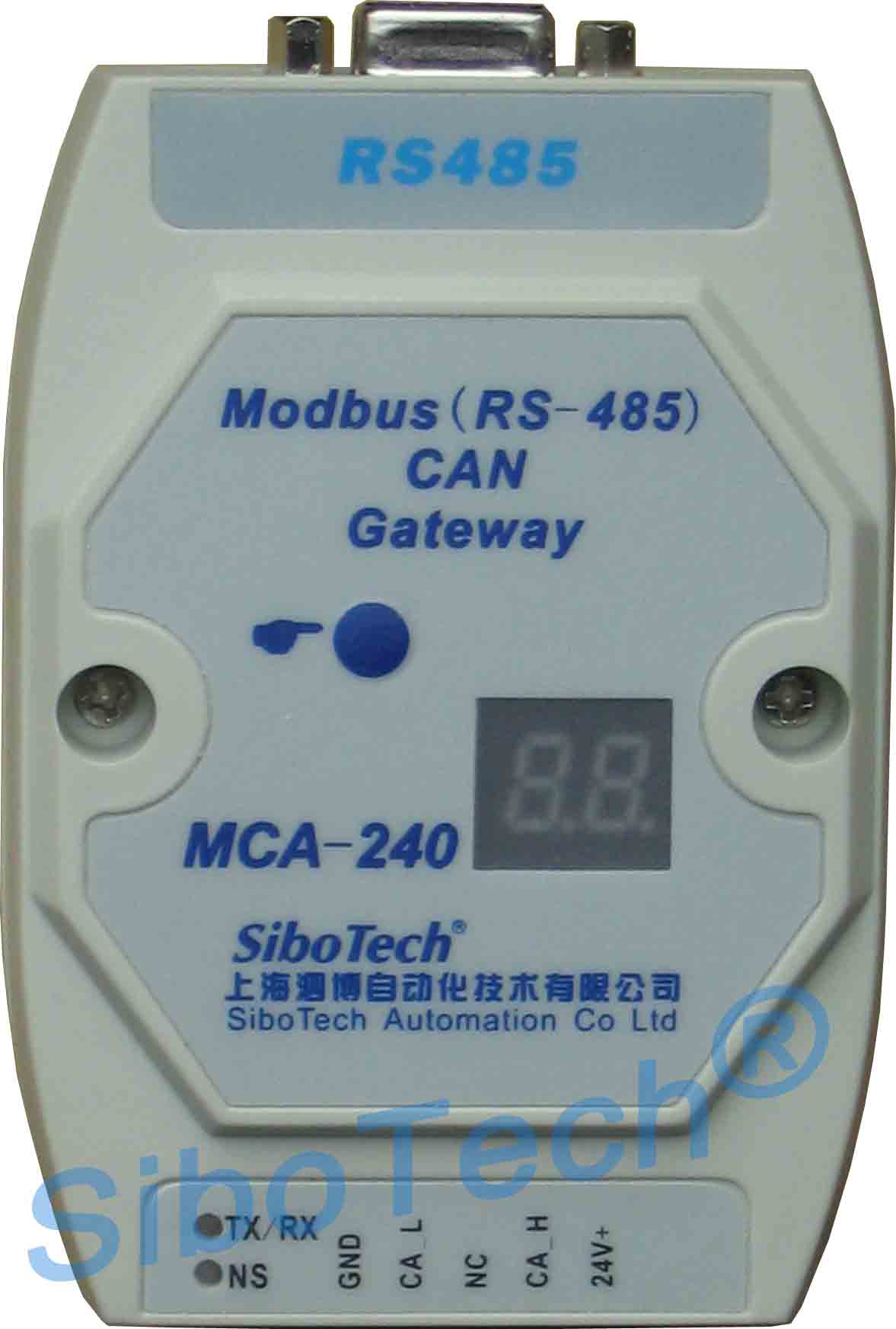

CAN/Modbus(Slave)Gateway |
|
| Order Code: |
MCA-240 |
| Description: |
|
| PLC, Controller and other devices with Modbus master interface can transmit and receive CAN2.0A/2.0B data by this product; it realizes the communication between Modbus data and CAN data.
|
| |
|
Features:
- Supports Modbus Master devices access the devices with CAN interface
- Easy to configure, completing the net communication in a short time
- Bi-directional caching the CAN frames
Technical Specification:
- One modbus salve interface, support 03、04、16 function codes
- Serial port’s Baud rate: 300, 600, 1200, 2400, 9600, 19.2 K, 38.4K, 57.6K and 115.2Kbps can be selected; Anti- human body electrostatic:15KV, surgesuppression: 400W
- One CAN prot support CAN2.0A and CAN2.0B; 1.5KV Optical Isolation; Baud rates support 1M, 500K, 250K, 125K, 100K, 62.5K, 31.25K, 20K, 10Kbps
- Caching 16 frame message of CAN receiving and transmiting
- Users can make the configuration by the free software MC-123
- Power Supply: 9V-30VDC
- Dimension(W*H*D): 100mm* 70mm * 25mm(3.95in*2.75in*1.00in)
- Protection Level: IP20
- OperatingTemp.: -4°Fto 140°F (-20ºC to 60ºC), Rel. Humidity: 5%-95% RH non-condensing
|
|
| |
|
|
| |
