Product Name:	Embedded PROFIBUS DP Interface Module
Order Code:	CPD-521
Description:
Embedded PROFIBUS DP module CPD-521 is one of the compact embedded module series; CPD-521 supports adding a PROFIBUS DP slave interface for Modbus RTU device through embedded Modbus UART interface. The module series are embedded with the same interface and the interface protocol (Software). Users only need to develop hardware and software once; the device can have a variety of field bus interfaces.
Technical Specification: Support PROFIBUS DP V1 with PROFIBUS DP standard DB9 connector; Modbus RTU communicates with the users’ products by the UART interface; The device with Modbus RTU protocol by the development will create more DP interface of product; Users can choose the automation detection or the DIP switch to set DP address; The PROFIBUS side of CPD-521 is PROFIBUS DP V1 slave, the serial side is the Modbus master; PROFIBUS DP baud rate is self-adaptive, range: 9600～12Mbps; Input Bytes ≤244 Bytes;Output Bytes ≤244 Bytes; 1KV isolated PROFIBUS interface; Modbus RTU is the UART interface and the baud rate canbe configured by the configuration software; Power: 3.3VDC(3.0V-3.6V, Power consumption is about 700mW); Working temperature: -40℃ to 60℃; Relative humidity: 5% to 95% (No condensation); Mechanical size: 49mm (L)40mm (W)20mm(H);
Download CPD-521 Manual V1.2
Download CEV-521 Manual
Download GSD file
Download Configuration Software CPD-123 V1.1

If you cannot browse PDF file normally,please go to www.adobe.com to download reading program .

Product Name:

Embedded PROFIBUS DP Interface Module

Order Code:

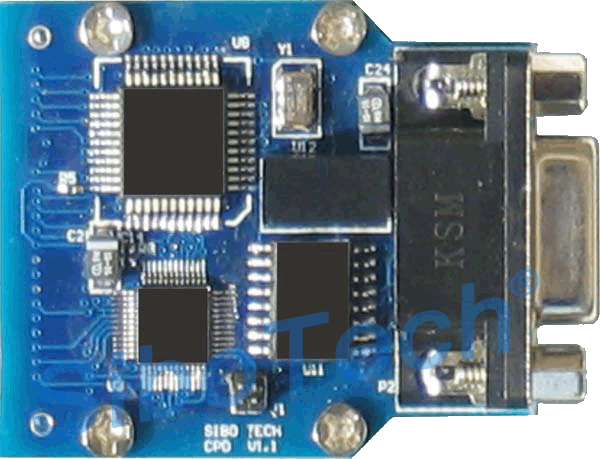

CPD-511

Description:

Not recommended for new product design, CPD-521 is recommended.

Embedded PROFIBUS DP interface module CPD-511/501 is a kind of compact embedded module series of SiboTech. The module series are embedded with the same interface (Hardware) and the interface protocol (Software). Users only need to develop the hardware and software one time, and you can let the device has a variety of fieldbus interfaces.

Technical Specification:

The fieldbus interface support PROFIBUS DP V1 slave;
PROFIBUS DP baud rate is self-adaptive, and the maximum is 12Mbps;
Maximum number of PROFIBUS DP input bytes and output bytes is 244 separately;
Length of data records (non-cyclic data) buffer is 244bytes;
Length of diagnostic buffer is 244 bytes;
Maximum bytes number of parameter data is 54;
Maximum bytes number of configuration data is 64;
PROFIBUS DP interface is 1KV isolated;
CPD-501 support Parallel, UART and SPI interfaces; CPD-511 support UART and SPI interfaces;
Power: 3.3VDC, power consumption: less than 1W;
Working temperature: -40℃ to 60℃;
Relative humidity: 5 to 95% (No Condensing);
Mechanical size: 49mm (L)*40mm (W)*20mm(H);

Download Manual

Download GSD file
