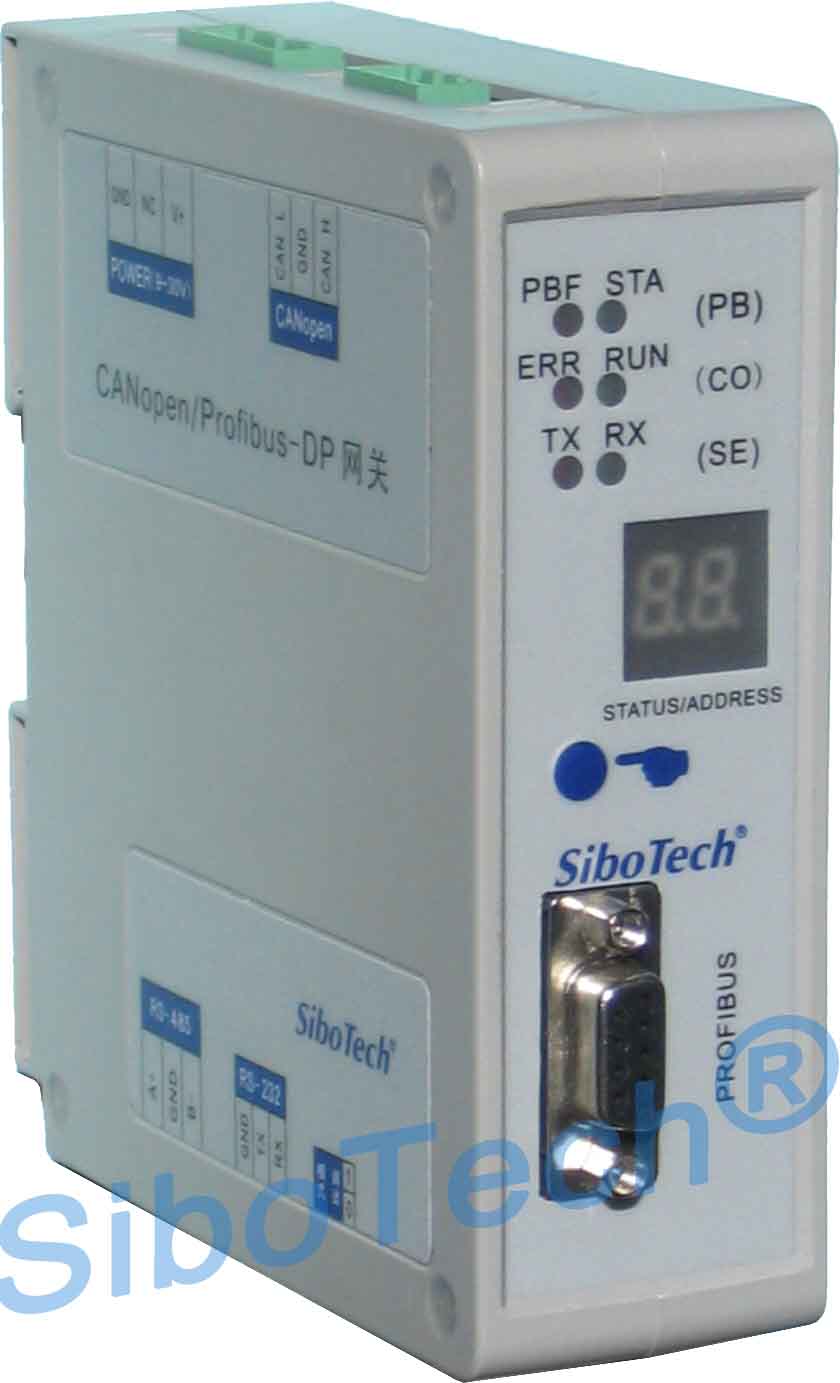

PROFIBUS DP/CAN Gateway PCA-100
CAN / PROFIBUS
price click click shipping shipping
Product Name: PROFIBUS DP/CAN Gateway
Order Code: PCA-100
Description:
The gateway PCA-100 can connect any CAN2.0A/2.0B devices to PROFIBUS DP network. and act as a slave on PROFIBUS DP.
Technical Specification:
  1. Supports multiple CAN2.0A/2.0B devices
  2. CAN baud rate up to 1Mbps
  3. Automatic baud rate detection on PROFIBUS DP(9600 bit/s ~ 12 Mbit/s)
  4. 2.5KV galvanic isolated on PROFIBUS DP and CAN interfaces
  5. Power Supply: 11V-30VDC, Maximum Power Dissipation: 2W
  6. Operating Temp.: -40°F to 158°F (-40 ºC to 70 ºC), Rel. Humidity: 5%-95% RH non-condensing
  7. Dimension(W*H*D): 40mm* 125mm * 110mm(1.6in*4.9in*4.5in)
  8. Mounting: DIN Rail Mounting(35mm)
