SNMP OPC Server

Product # KWP-ISNMP1-PRD

1-15 Devices

Product # KWP-ISNMP2-PRD

16-50 Devices

Product # KWP-ISNMP0-PRD

Unlimited Devices

The Industrial SNMP driver for KEPServerEX provides valuable insight into the performance of a variety of industrial control system networks. The controllers, software, and underlying control network make up a modern control system. The entire system can become unreliable without stable performance from all three components. With the SNMP driver suite you can monitor and analyze your plant Ethernet-based network from within your existing HMI package and never have to rely on blind faith that the network is performing to specifications.

Kepware purchased all SNMP-related assets of COI Software including it's patent on "System and Method for Integrating Process Control and Network Management" (U.S.Patent No. 6,728,262) in September 2007.

SNMP OPC Server Suite includes:

SNMP OPC Server
Ping OPC Server

SNMP OPC Server Manual (PDF)

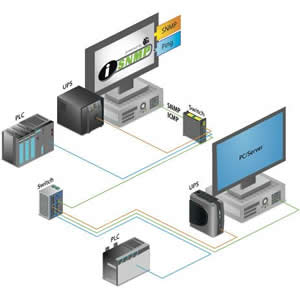

The SNMP OPC Server Suite seamlessly integrates monitoring and analyzing of Managed and Unmanaged SNMP supported Ethernet network devices into the leading HMI, SCADA, Historian, or MES software packages. Automation professionals can now reliably incorporate the status of Hubs, Routers, Switches, PCs/Servers, UPS devices, and other Managed or Unmanaged devices directly into their automation systems.

Read our article on the laymans Guide to Leveraging SNMP - The Solution to the Problem You are About to Consider Very Important!

Instructions on upgrading legacy (COI) projects to the new iSNMP suite based in Kepware OPC technology.
Download the new Project Conversion Utility for iSNMP.

Plug-in Driver Features:

The SNMP OPC Server provides convenient "Specialty tags" to help users know more than the current value of a single polled OID. The tags include: History tags, Events tags, Table Offsets, and ScanFloor tags.

Auto Discovery – Save time by using the Auto-Discovery tool to search your Ethernet network for managed network devices. - (Available Q1, 2010)

MIB Import - Import MIB files from manageable devices and easily map network device MIB addresses to SNMP tag names.

Network Analyst - Network Analyst gathers raw SNMP data from network devices and continually performs calculations to generate data that can be used, such as bandwidth utilization and network error rate statistics

SNMP Traps Support - Many SNMP manageable devices can be configured to send unsolicited data to network management software systems such as our SNMP OPC Server. By configuring an SNMP device to send data without being "polled" such as when a critical system tag goes into an unfavorable state, you can reduce the need for "polling" the network device. SNMP driver supports receiving SNMP Trap data via Events tags as well as through defined Trap OIDs.

Historical Data Attributes – Previous Value, Delta Time, Moving Average

Historical values are generated by the SNMP OPC Server (not the remote Agent/device) when an OID has valid historical modifiers appended to it.

Events Tags – Events_001, Events_001_001, Events_001_FieldCnt, Events_Count

A FIFO-based queue to receive Traps / Notifications from previously configured Agents.

Table Offsets – OID[1] Table access is accomplished by enumerating columns of a table. The SNMP OPC Server uses an array-like notation for Table access.

ScanFloor property – _ScanRateFloor, _ScanRateFloorLock

SNMP devices are typically scanned at much slower rates than other controls equipment. Scanning an SNMP device too quickly may result in degraded device performance. The Scan Rate Floor has been added to prevent users from inadvertently overloading Agent/devices with read requests in the order of milliseconds.

The Scan Rate Floor is the minimum rate to scan SNMP devices. The default is 1000 milliseconds. When set (to a non-zero value) the SNMP driver will never scan the remote device more often than the specified scan rate.

Note: OPC clients can still poll the SNMP server and obtain the last read value at a much faster OPC Group Update Rate. The 'Lock' option will lock the Scan Rate for this device to the given value. When Locked, the driver will always poll at the Scan Rate setting regardless of OPC client update rates that are below or above this rate.

Unmanaged Device Monitoring

Not all Ethernet network devices are SNMP managed. To help monitor any system from within your HMI, the new SNMP OPC Server suite contains a Ping driver which automatically generates OPC tags for each Unmanaged device defined. These "heartbeat" and "response time" tags provide a standardized and reliable way to monitor all devices in the Ethernet network.

Runtime Management of Device Polling

The SNMP OPC Server supports Device Auto-Demotion for Managed or Unmanaged devices. Users can adjust Auto-Demotion parameters to allow drivers to temporarily place a device off-scan in the event that it is not responding. This allows the driver to continue to optimize its communications with other available devices on the same channel as well as notify the client application of the event. A new ScanFloor device property provides robust polling control when the control application can not tolerate a one size fits all approach to network device polls. An additional benefit of the ScanFloor setting is its ability to handle devices independently especially when Agent loading is a concern. _System tags expose Auto-Demotion and ScanFloor tags to any HMI or control application of your choosing.

Protocol

SNMP protocol, versions 1 and 2c

Simple Network Management Protocol (SNMP) is an application layer protocol that facilitates the exchange of management information between network devices. It is part of the Transmission Control Protocol/Internet Protocol (TCP/IP) protocol suite and is a standard maintained by the IETF.

SNMP enables Network Administrators to manage network performance, find and solve network problems, and plan for network growth. It is an open protocol and for years it has been the de facto standard protocol used between network management systems and network devices.

Supported Devices

SNMP Managed Devices. The driver works with a broad range of SNMP Managed devices such as:

Alarm Management RTUs
Device Servers
Environment Monitoring Equipment for Server Rooms
Managed Industrial Ethernet Switches
Printers
Routers
Uninterruptible Power Supplies (UPS)
Unix-based Servers
Windows-based PCs and Servers

附加资源:

相关产品:

What Is a Driver?

KEPServerEX is more than an OPC server—it's a connectivity platform for industrial automation and IoT. Simply download KEPServerEX, and then select from Kepware's library of more than 150 device drivers, client drivers, and advanced plug-ins to fit the communication requirements unique to your industrial control system.

A driver is a software component that enables KEPServerEX to meet the connectivity requirements of a specific device, system, or other data source. The driver handles all proprietary communications to the data source for KEPServerEX; the client interfaces handle all supported OPC, proprietary, and open standards connectivity to applications that monitor or control the devices.

Drivers may be licensed individually or in suites. Additional drivers can be licensed on demand as connectivity needs evolve.
